The operating desk accommodates three operators, for multi-class
contesting efforts.
|
For
HF:
-
Two IC-7600 transceivers
-
IC-756PRO3 transceiver
-
ICOM 746 PRO transceiver
- ACOM
1000 amplifier (6-160)
- Alpha
91b amplifier
- Nye
Viking MB-V-A tuner
- Rotor
controls and antenna switches
- Restored
NC 183D for nostalgic SWLing
- ICE
Filters and computer networking for M/S contests or SO2R.
|
The antennas are supported
on three towers:

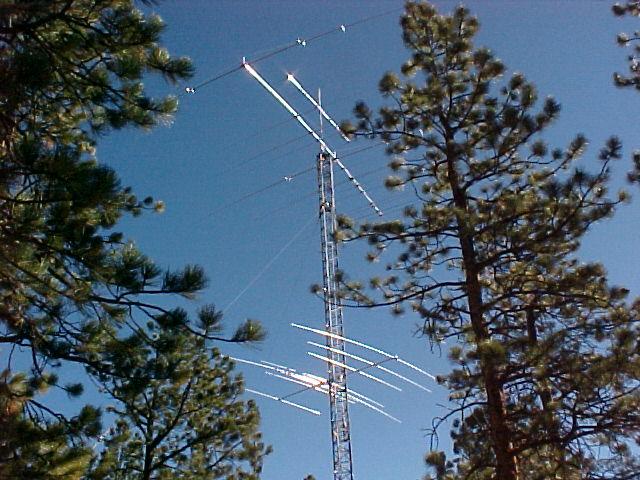

- An 85-ft. tower supports:
- Force 12 C39XRN at
85 ft (40-20-15-10)
- Force 12 7-element
6M beam at 90 ft
- Force 12 C3E side-mounted
at 50 feet (covers Japan through Europe),

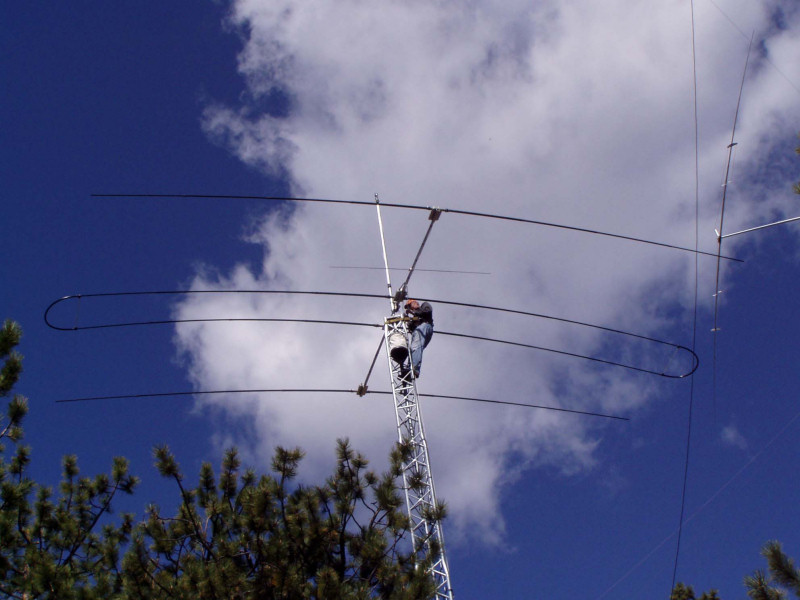

- A 50-ft. tower supports
a 3EL STEPPIR for 10,12,15,17,20,30 and 40 mtrs.

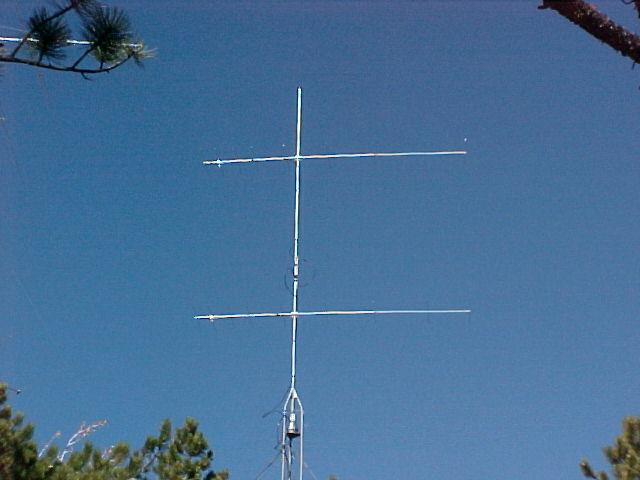

- A 40-ft.
tower supports stacked M2 beams for 2 meters
- Wire
antennas for 30, 80 and 160
In addition, the WØLSD 2
meter repeater is located at the cabin. The frequency is
146.745 (transmit offset down 600 khz). The repeater is
open and has pretty good coverage for the area.
|
